PC20 & PC25 Slim Sliding Doors

MAXIMUM LIGHT – MINIMAL FRAMES

PC20 & PC25 Slim Sliding Doors – Maximum Glass, Minimal Frame

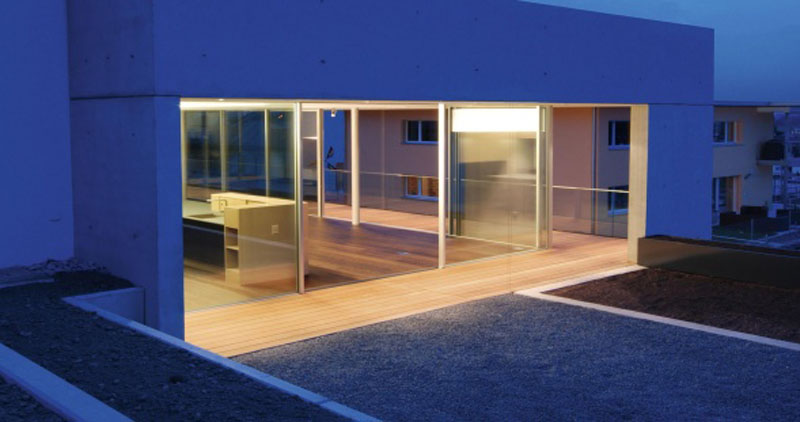

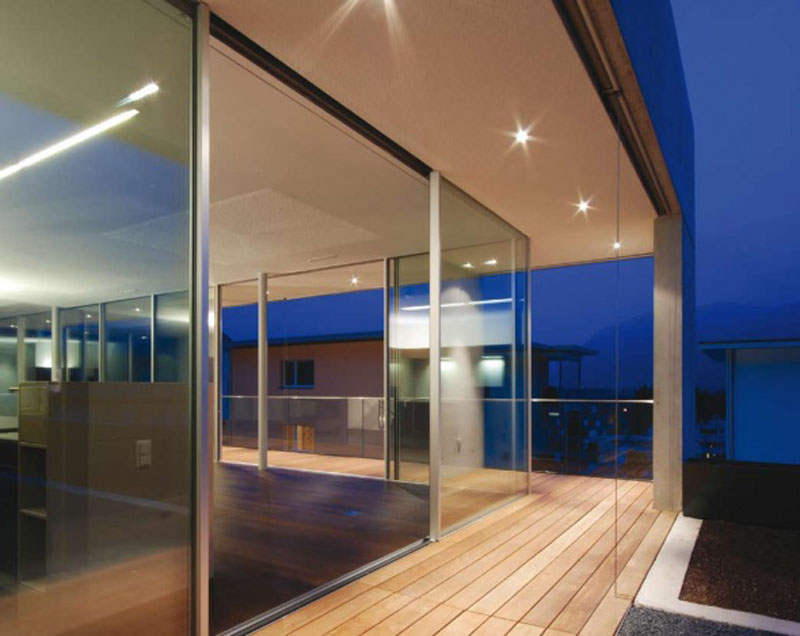

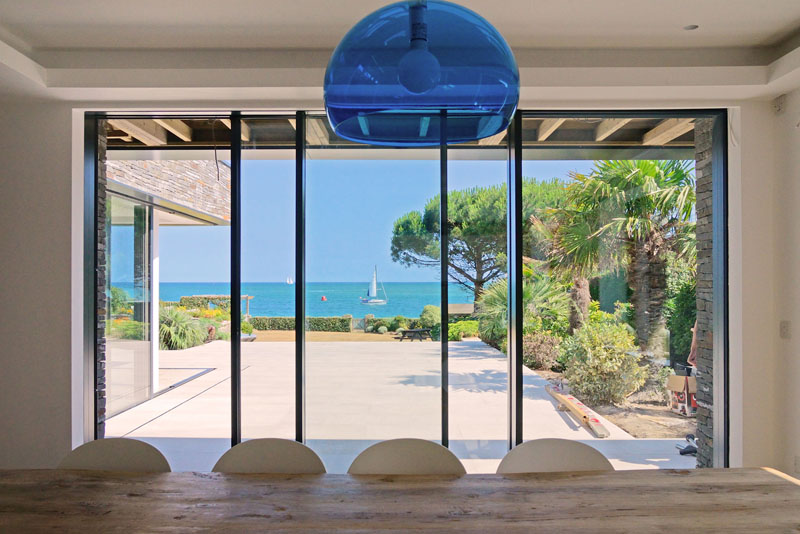

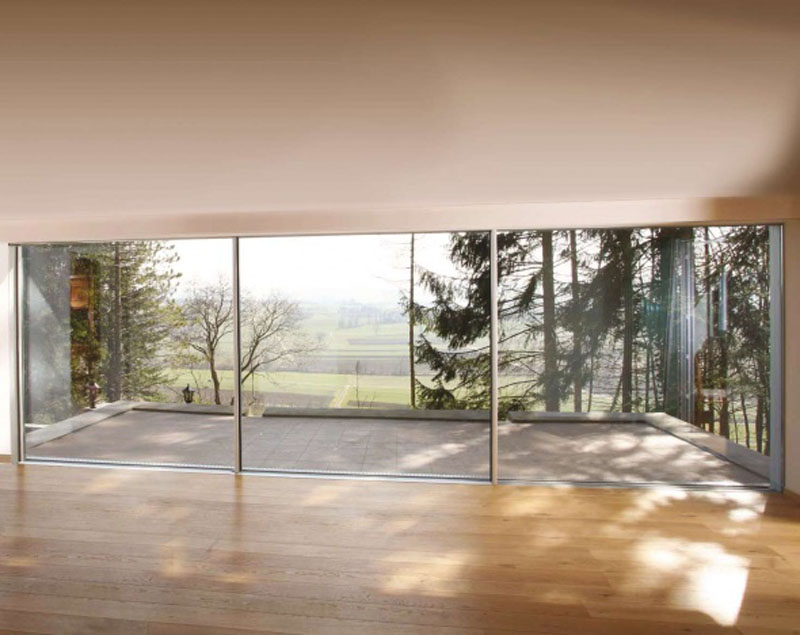

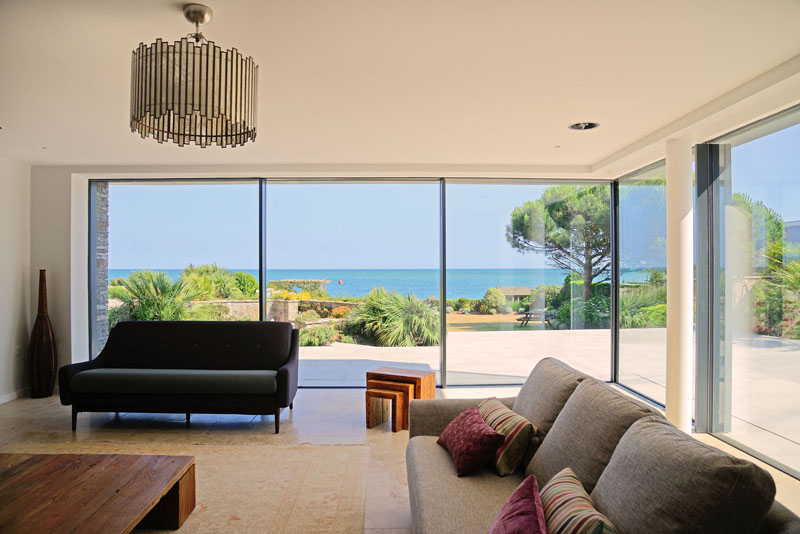

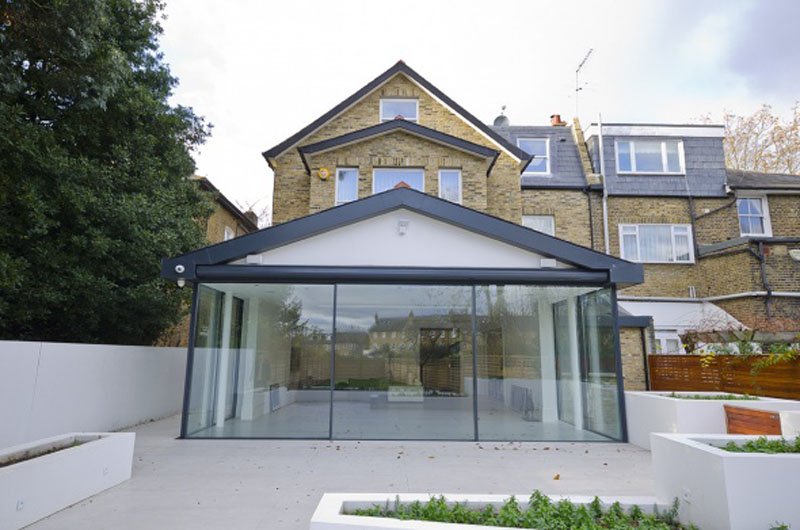

Our PC20 aluminium sliding doors feature an ultra-slim 20mm central interlocking frame combined with a smart design that allows the entire sash to be completely concealed within the building’s wall chamber, delivering a full 100% opening for seamless indoor-outdoor living.

Slim, Modern Design with Outstanding Performance

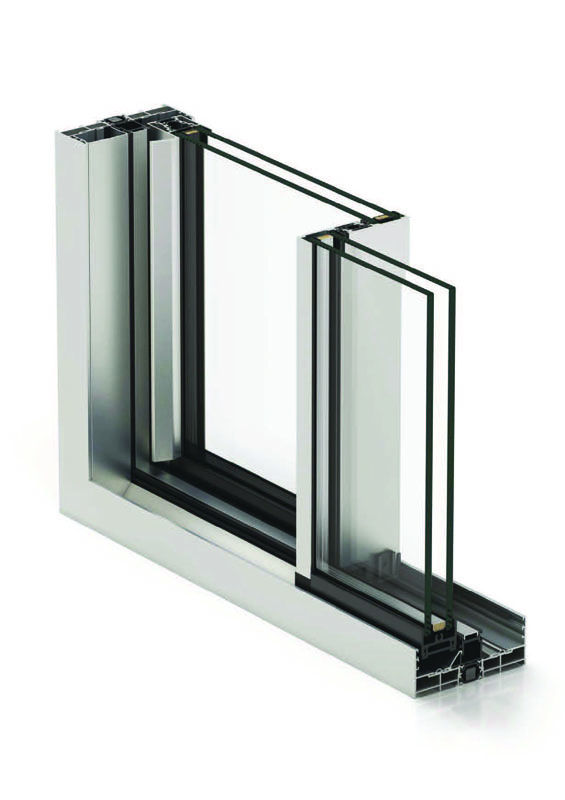

The thermally broken PC20 sliding system maximises glazing area with minimal visible frame, creating an elegant, contemporary look. The central interlock is just 20mm wide, or 25mm with the XL option designed for taller sashes over 3 metres high.

Innovative GALANDAGE System for Total Opening

The PC20 incorporates a new GALANDAGE sliding system that fully conceals one or two sashes inside the wall cavity, offering either a single or double sash door with 100% opening capability. Choose from mono-, two-, or three-rail configurations depending on your space and style requirements.

Smooth Operation and Durable Construction

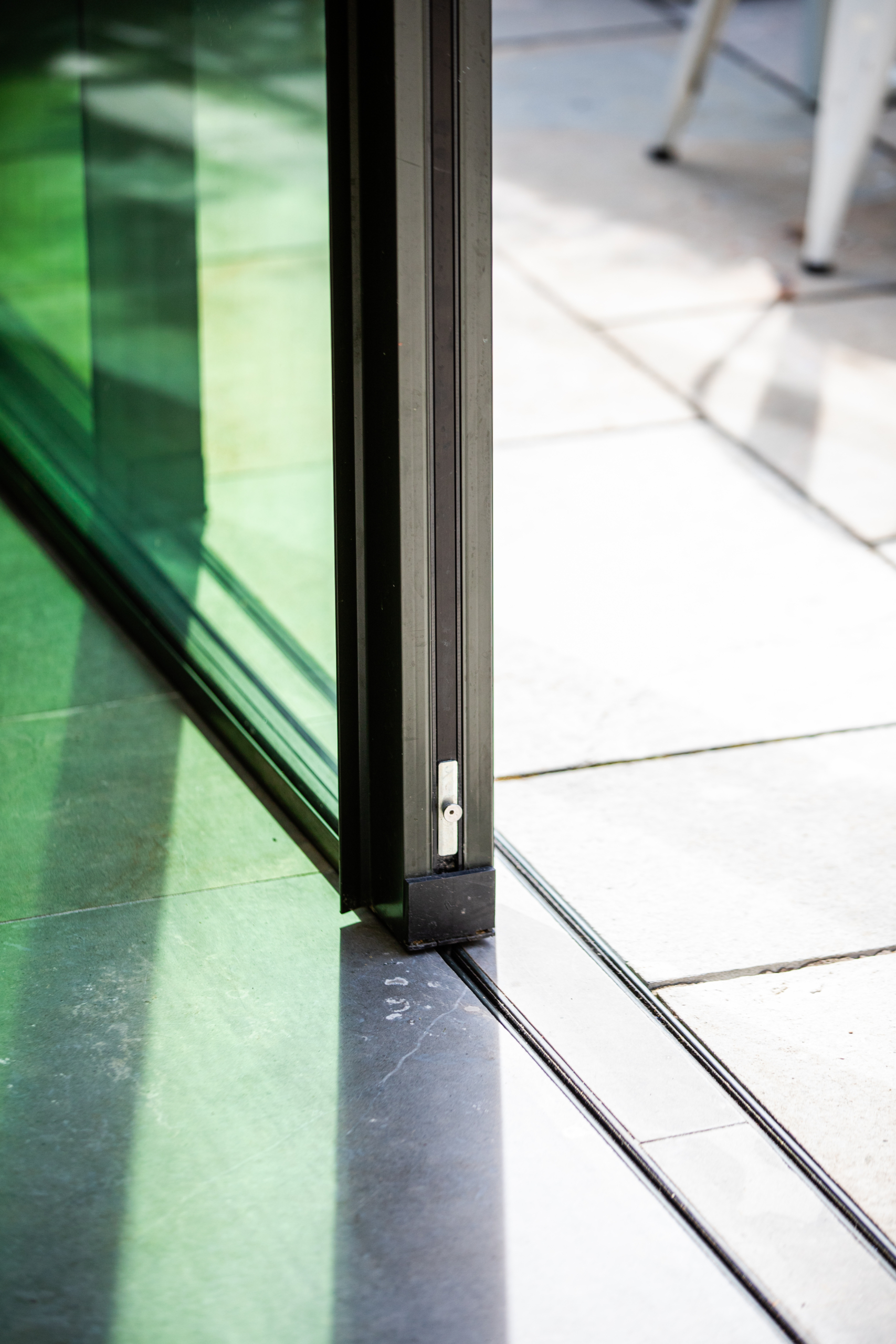

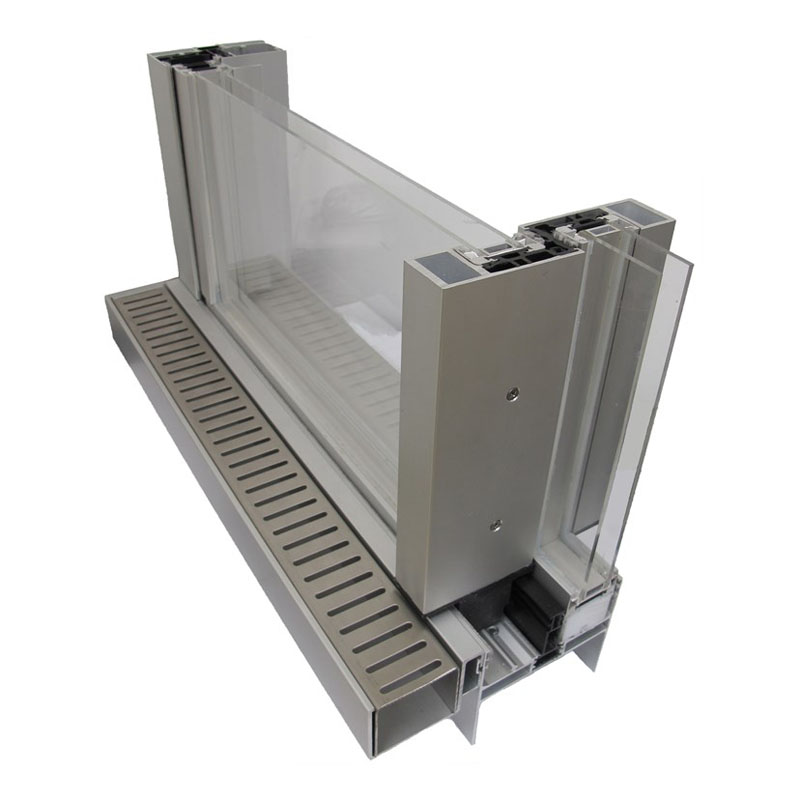

Equipped with a stainless steel rail, the PC20 sliding doors ensure smooth, effortless sliding and enhanced durability for long-term reliability.

Customisable to Your Needs

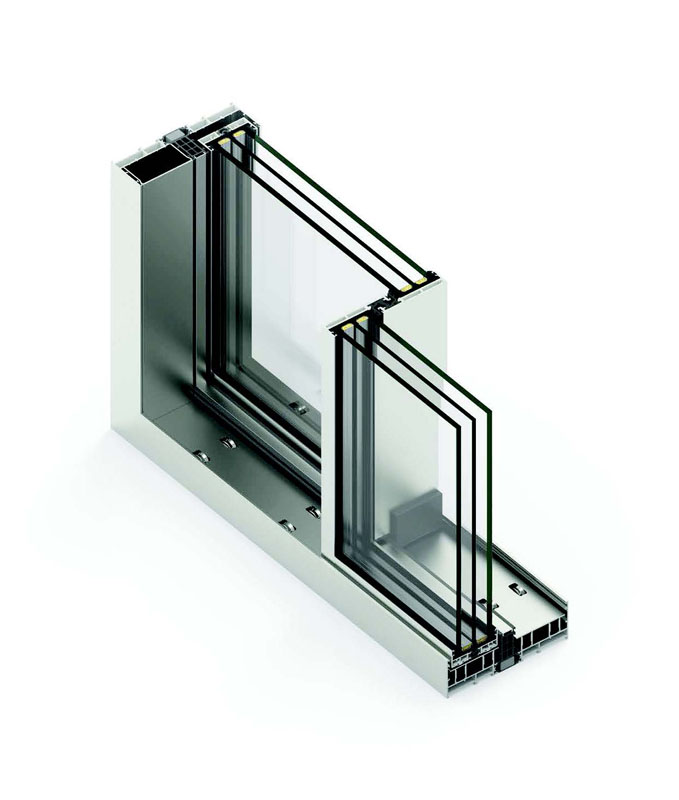

Maximum door sizes up to 4000mm x 4000mm with the PC25 XL option
Standard PC20 system max size: 2200mm (W) x 3000mm (H)
Maximum sash weight up to 320 kg
Wide range of finishes, including dual colour options with:
- Colour powder coating (RAL colours, mottled and rough textures)
- Wood effect finishes
- Anti-bacterial coatings
- Anodised surfaces

Built to High Standards

Thermal transmittance (U-value) as low as 1.3 W/m²K
Water tightness: Class 7A (EN 12208:2000)
Wind resistance: Class CS (EN 12210:2000)
Air permeability: Class 4 (EN 12207:2000)

Need Help Choosing?

Unsure whether sliding doors or bi-folding doors suit your project best? Visit our Advice Centre for expert guidance, or drop by our showroom to see the PC20 in action.

Key Features

Ultra-slim 20mm central interlock (25mm XL option)

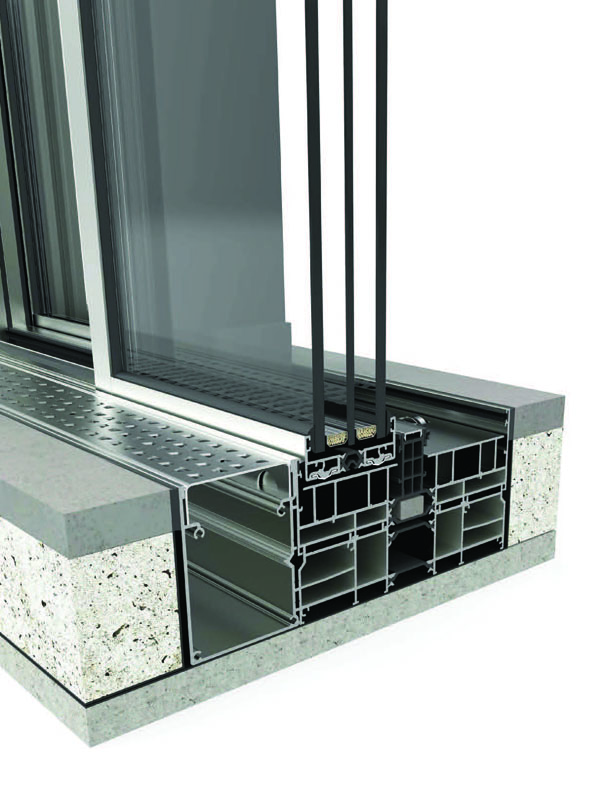

GALANDAGE system for fully concealed sashes and 100% opening

Mono-, 2- or 3-rail configurations

Stainless steel rails for smooth sliding and durability

Wide finish options including dual colour coatings

Large maximum door sizes and heavy sash support

Excellent thermal, weather, and wind resistance ratings

Visit Our Showroom

Discover the PC20 & PC25 slim sliding door system in person and speak to our experts about creating the perfect slim framed doors for your home or project.

Brochures

View our PC20 Slim-Sliding Door brochure:

PC20 Slim-Sliding Doors

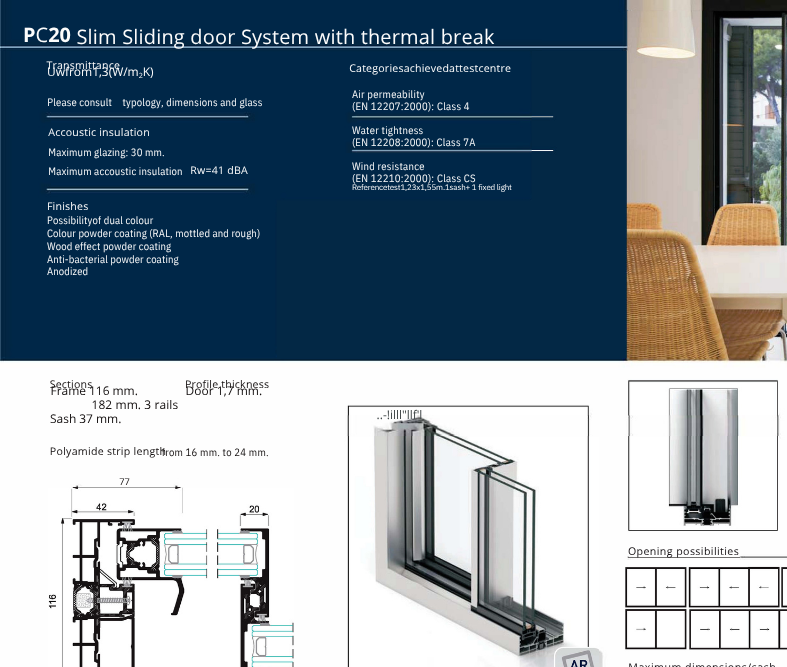

PC20 Slim-Sliding Doors Specification

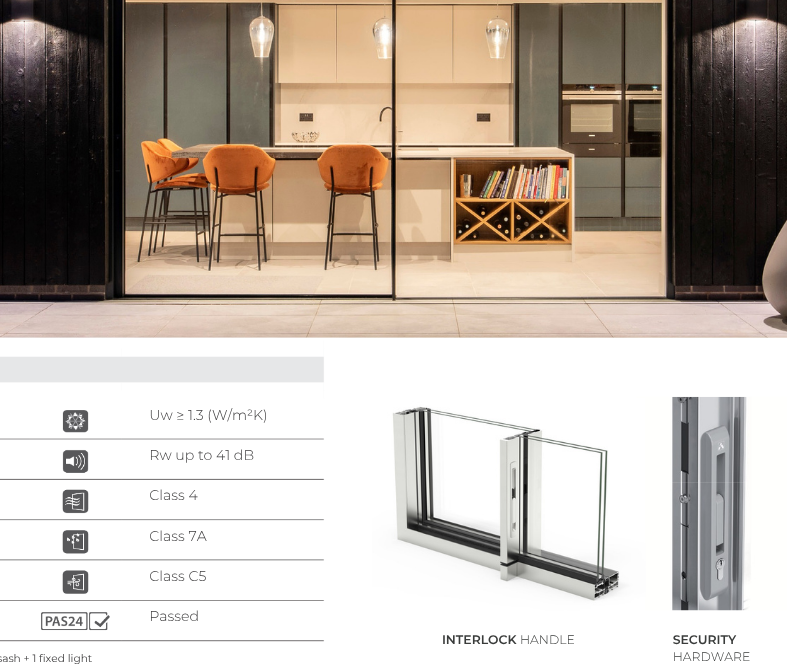

PC20 Cortizo

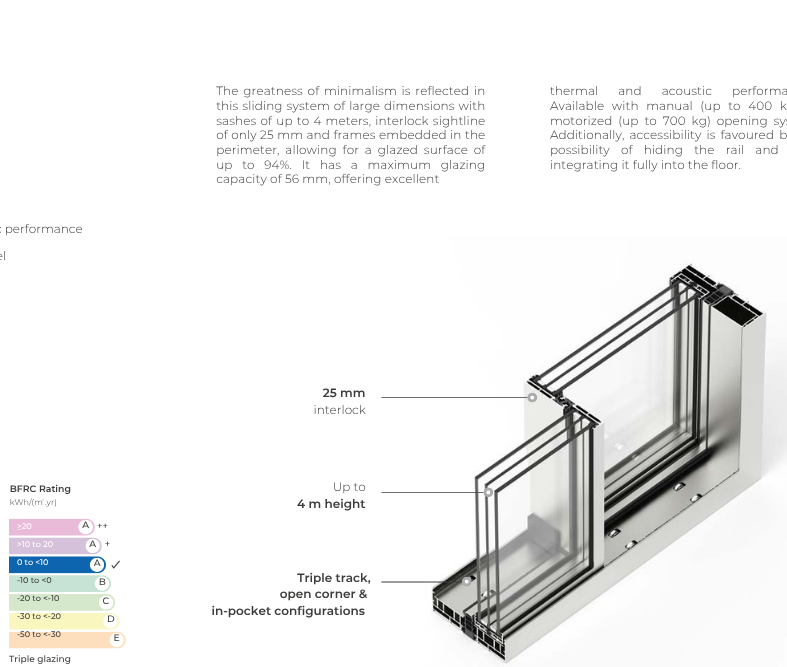

PC25 Cortizo

PCW Brochure

Already have your drawings?

Our Sales Team are highly qualified to assist you at every step of your journey with us. If you prefer to call or send us an email regarding your project get in touch on 0208 9616 111 or send us an email.
